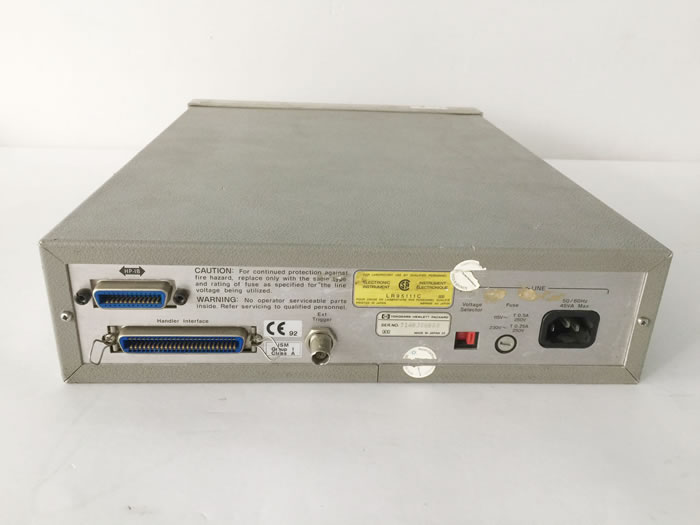

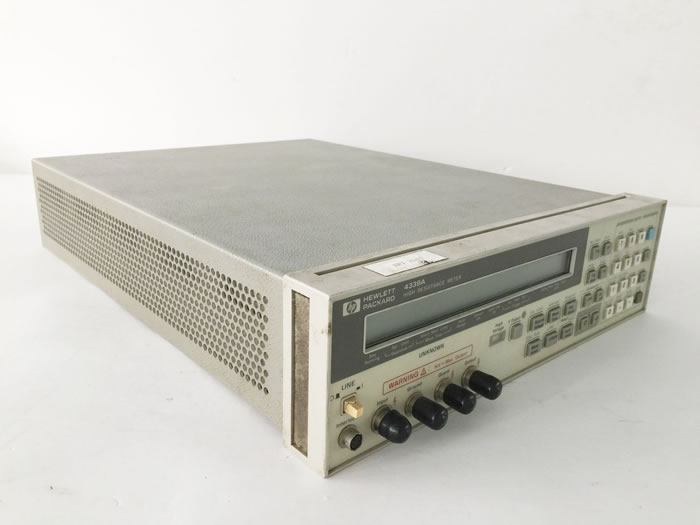

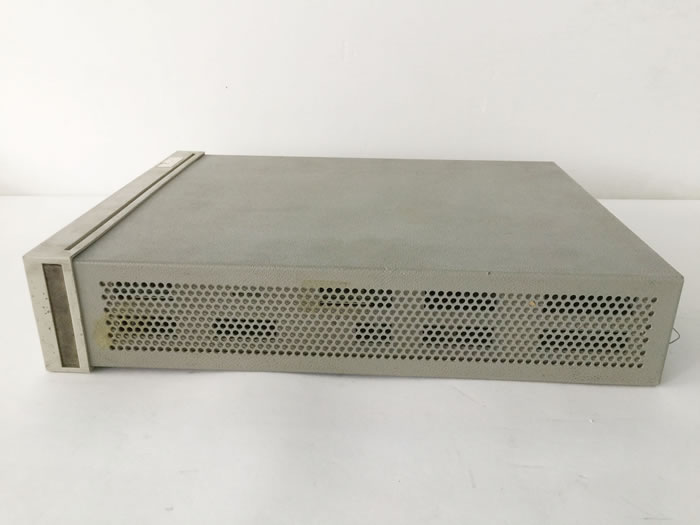

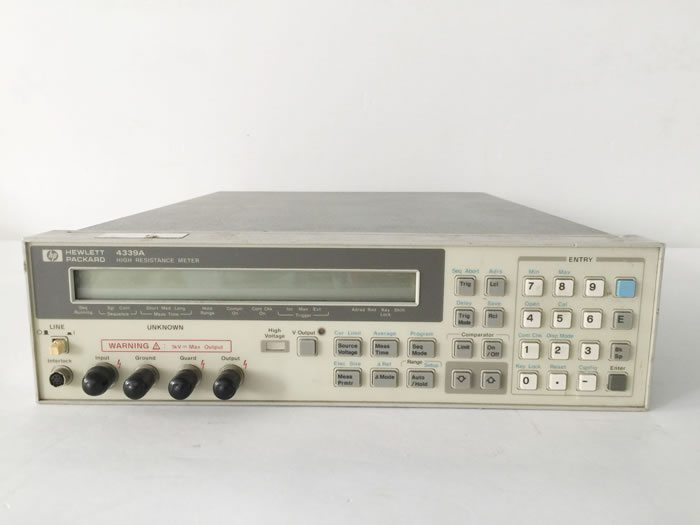

美國 惠普HP 4339A 高阻測試儀 毫歐表
Wide measurement range: 1 x 103 ohm to 1.6 x 1016ohm
Stable test fixtures: resistivity cell, component test fixture
High-speed measurement: 10 ms
Test sequence programming
Resistivity calculations
Grounded DUT measurement
Specifications
Measurement Functions
Measurement Parameters: R (dc resistance), I (dc current), rs (surface resistivity), rv (volume resistivity)
Mathematical Functions: Deviation and percent deviation
Ranging: Auto and manual
Trigger: Internal, external, manual, and HP-IB
Delay Time: 0 to 9999 ms in 1 ms steps
Test Cable Lengths: 2 m maximum
Measurement Time: Short, medium, and long
Averaging: 1 to 256
Test Voltage: 0 to 1000 Vdc, 100 mV steps @ 0 to 200 V, 1 V steps @ 200 to 1000 V
Maximum Current: 10 mA @ < 100 V, 5 mA @ < 250V, 2 mA @ < 500 V, 1 mA @ < 1 kV
Current Compliance Setting: 0.5 mA, 1 mA, 2 mA, 5 mA, 10 mA
