描述

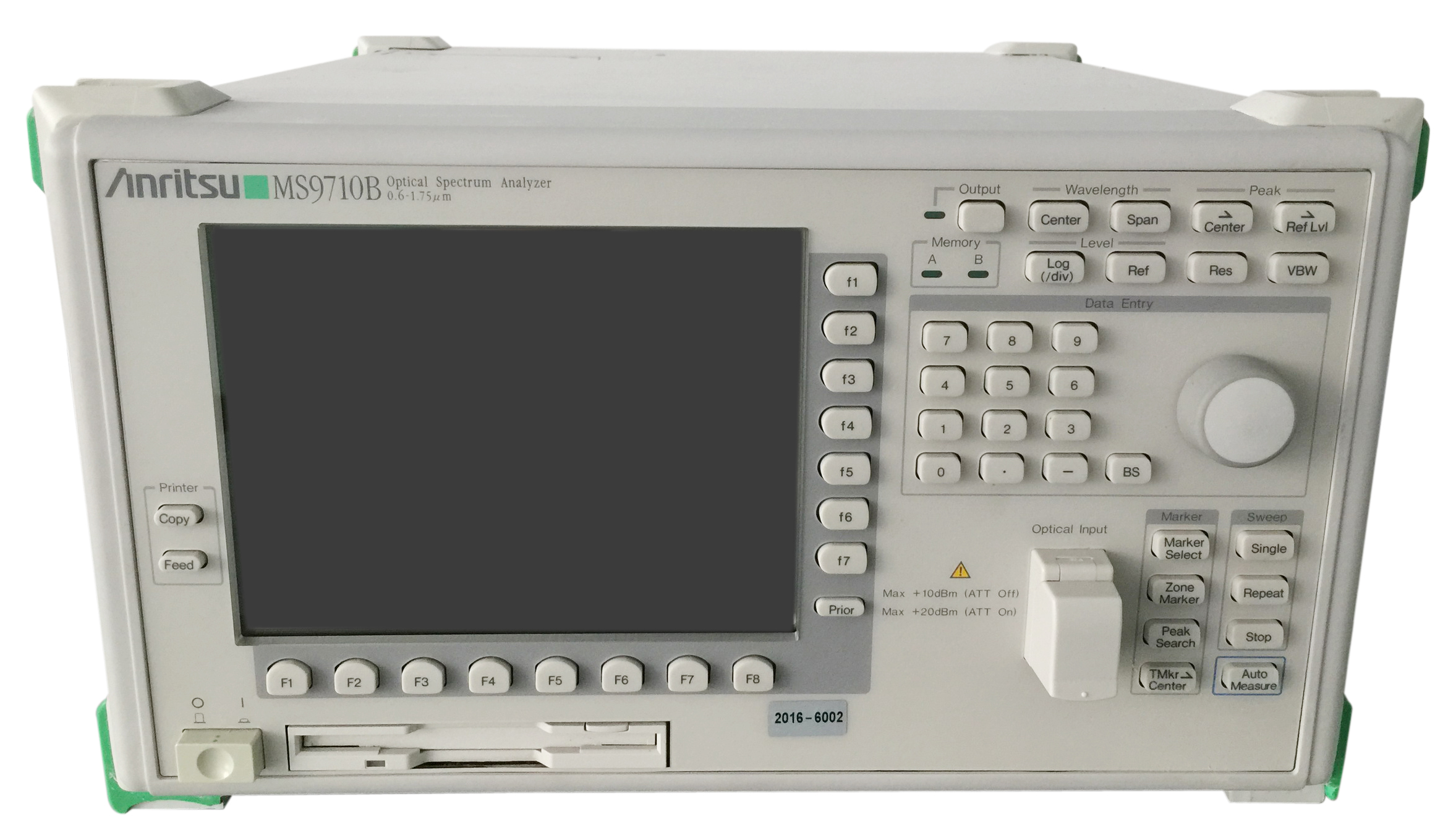

MS9710B光譜分析儀是一種衍生光柵型光譜分析儀，用于分析 600 至 1750 nm波段范圍內的光譜。具有自動測量、峰值自動搜索、譜寬計算、標記到標記間光譜測量、SMSR的分析、曲線擬合、OBPF的測試、包絡分析、n-dB衰耗、譜功率、WDM波長電平信噪比、光放大器增益、噪聲系數、無源器件測試和各種光源分析等。

特征

• 寬的波長范圍:600-1750nm，覆蓋單模、多模所有波段

• 高的波長精度和重復性，測試準確, 1530-1570nm波段的波長精度可達到+/-50pm

• 70dB的動態范圍距離峰值波長1nm的動態范圍為70dB

• 高靈敏度：-90dBm

• 支持DWDM信道的波長、功率和信噪比的測試

應用

• Overview
  The MS9710B can measure wavelength, power level and SNR for up to 300 DWDM channels. It can also be used for PMD and EDFA noise floor measurements



• Tunable Laser Source Tracking

  This internal function eliminates the need for an external controller to make measurements using an Anritsu TLS.

• Internal Light Sources

  Optional SLD, white light, and reference wavelength light sources can be installed in the MS9710B to simplify measurements. Calibration with the built-in reference source is a one-button operation.

• L-Band Measurements

  Option 15 improves wavelength accuracy, resolution, power level flatness, and linearity in the 1570 to 1620 nm  L-band region.

download: MS9710B技術資料
